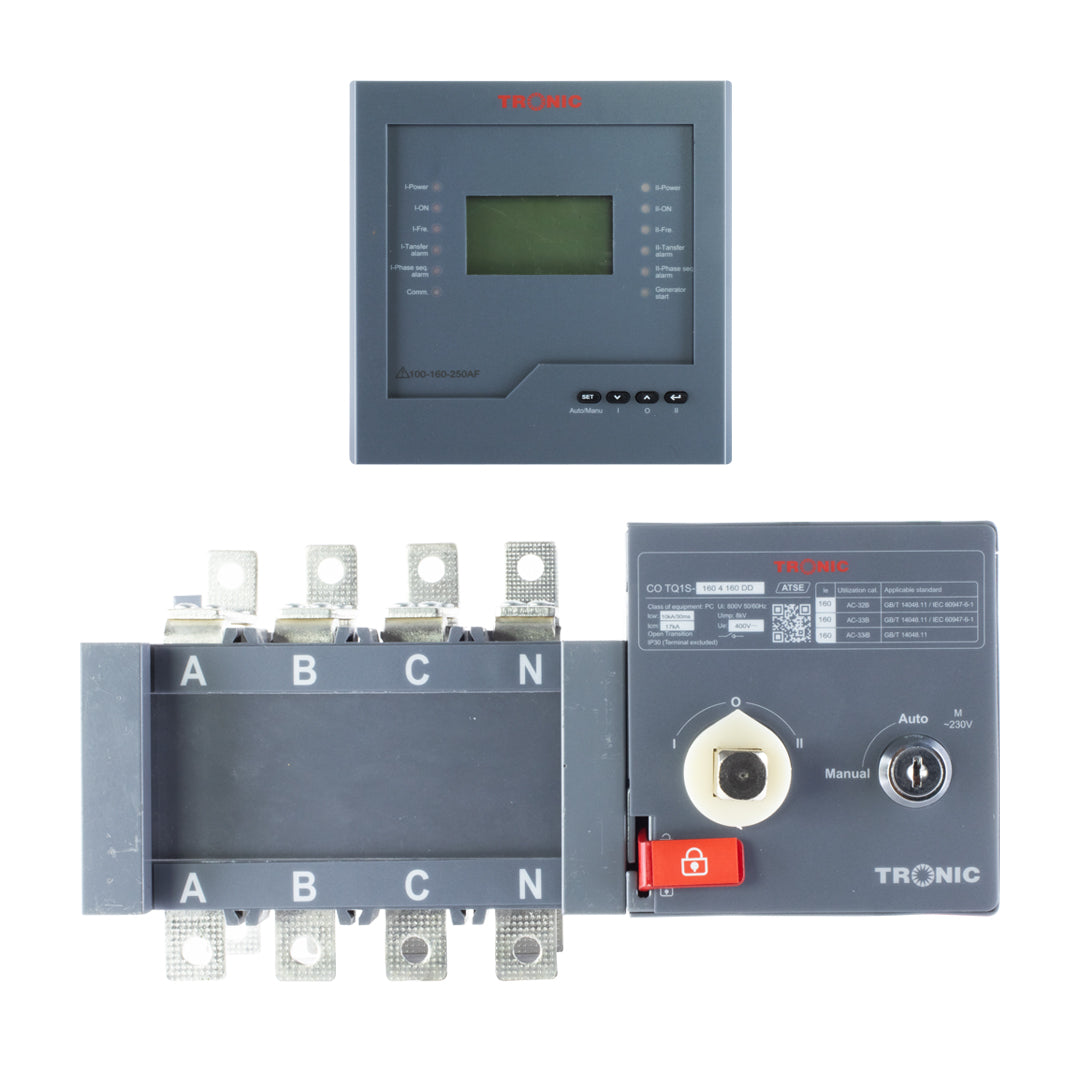

TRONIC TQ1S 160A 4-Pole Automatic Transfer Switch (ATS) – D-Type, Split & LCD Screen, Bottom Entry

The TRONIC TQ1S 160A 4-Pole Automatic Transfer Switch (ATS) is designed for reliable automatic and manual switching between a normal power source and an alternative power source. This D-Type model features a split design and LCD screen for convenient monitoring and control, with a bottom-entry configuration.

The TQ1S series is designed for AC power systems operating at 50/60 Hz, with a rated operating voltage of 230/400 V. The series supports rated operating currents from 32A to 3200A, while this specific model is rated at 160A.

The switch incorporates electrical key locking, manual operating handle, mechanical padlock capability, position indication, and automatic/manual control functions for improved operational flexibility and maintenance safety.

Application

The TRONIC TQ1S 160A ATS is suitable for electrical power systems where continuous power availability is important. It can be used to automatically or manually transfer electrical loads between a normal source (Source I) and an alternative source (Source II).

Typical applications include:

• Backup and standby power systems
• Generator and utility power transfer
• Commercial and industrial electrical installations
• Building power distribution systems
• Critical electrical loads requiring source transfer
• Electrical panels and distribution equipment
• Systems requiring manual or automatic source switching
