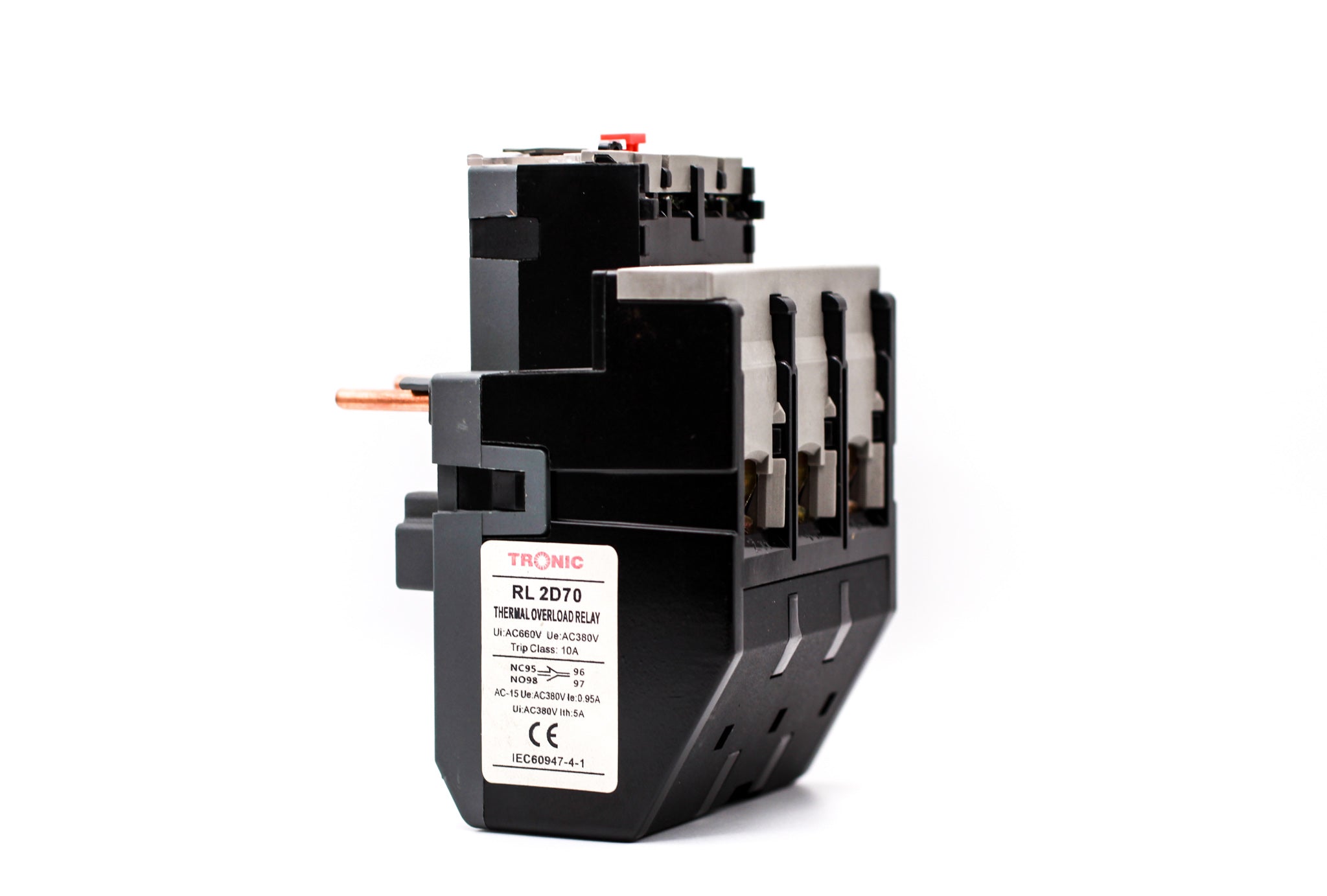

Thermal Overload Relay – 55-70Amps

Thermal Overload Relay – 55-70Amps

SKU RL 2D70-36-10
KSh 2,038 - KSh 2,038
KSh 2,038
KSh 2,038 - KSh 2,038
KSh 2,038
Availability:
in stock, ready to be shipped

Features:

  • Current Setting Range: 55–70A – Adjustable thermal protection for motor circuits
  • Trip Class: Class 10 – Fast response to overload conditions
  • Rated Insulation Voltage (Ui): 660V – High voltage tolerance
  • Operational Voltage (Ue): 380V AC – Standard motor system compatibility
  • Rated Control Circuit Voltage (AC-15): 380V / 0.95A – Efficient auxiliary contact switching
  • Thermal Current (Ith): 5A – Durable thermal performance
  • Indicators: ON/OFF status with test and stop
    buttons
  • Reset Options: Manual and automatic reset capability
  • Mounting: DIN rail or direct-on-contactor installation
  • Certifications: CE approved – Meets international quality and safety standards

Delivery time

1-3 Days

The thermal overload relay 55-70 amps is engineered for protecting AC motors from overload and phase failures. With an adjustable current setting range of 55A to 70A, this unit ensures precision safety in motor control applications. Built to comply with IEC 60947-4-1 standards, it features a quick-reset mechanism, visible trip indicators, and straightforward DIN-rail mounting. Designed for reliable thermal protection, it integrates seamlessly with compatible contactors for enhanced safety and performance.

Applications:

  • Motor Protection: Prevents damage from overload and phase failure
  • Industrial Automation: Ideal for machinery with frequent start-stop cycles
  • Panel Integration: Suitable for control panels in factories and processing plants
  • HVAC Systems: Safeguards compressors and large fans from overheating
  • Pumps and Conveyors: Ensures safe operation in continuous duty applications
