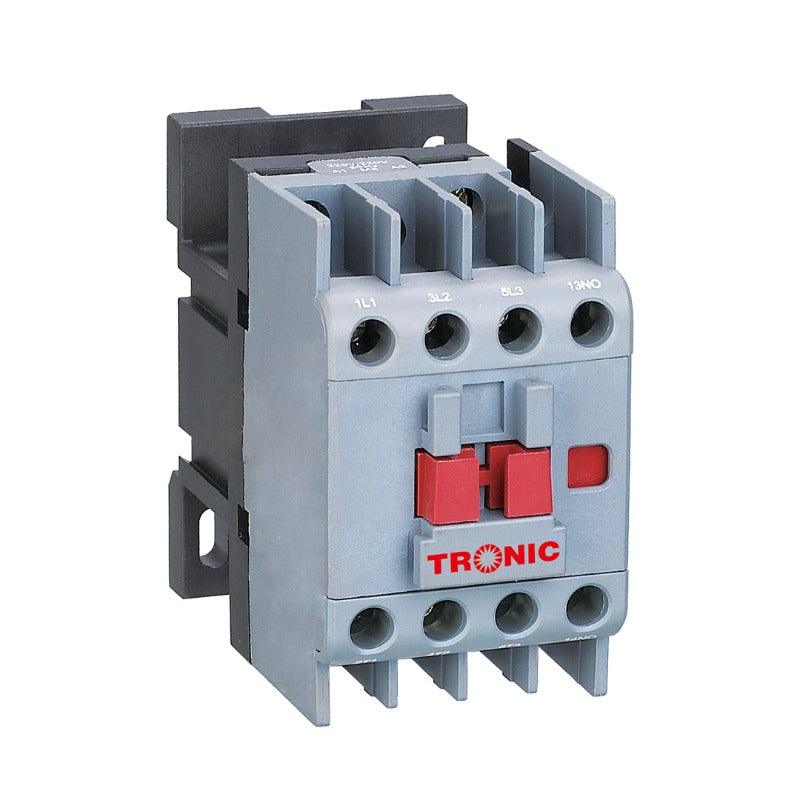

A contactor is a switch that is electrically operated and used to switch an electrical power circuit. A circuit that has significantly less power than the switched circuit is frequently used to control a contactor, such as a 24-volt coil electromagnet controlling a 230-volt motor switch.
Specifications:
- Colour: Grey
- Amps: 12A
- Voltage: 220V
Warranty:
1 Year
Contactor model |
CT C306 |
CT C309 |
CT C312 |
CT C318 |
CT C325 |
CT C332 |
CT C338 |
CT C340 |
CT C350 |
CT C365 |
CT C380 |
CT C395 |
||
Main circuit characteristics |
||||||||||||||
Number of poles |
3 poles |
|||||||||||||
Rated insulation voltage(Ui) |
V |
690 |
||||||||||||
Maximum rated operating voltage(Ue) |
V |
660/690 |
||||||||||||
Conventional thermal current(Ith) |
|
25 |
25 |
25 |
32 |
40 |
50 |
50 |
60 |
80 |
80 |
125 |
125 |
|
Rated operating current(Ie) |
AC-3,380/400V |
A |
6 |
9 |
12 |
18 |
25 |
32 |
38 |
40 |
50 |
65 |
80 |
95 |
AC-3,660/690V |
A |
3.8 |
6.6 |
8.9 |
12.0 |
18.0 |
22.0 |
22.0 |
34.0 |
39.0 |
42.0 |
49.0 |
49.0 |
|
AC-4,380/400V |
A |
2.6 |
3.5 |
5.0 |
7.7 |
8.5 |
12.0 |
14.0 |
18.5 |
24.0 |
28.0 |
37.0 |
44.0 |
|
AC-4,660/690V |
A |
1 |
1.5 |
2.0 |
3.8 |
4.4 |
7.5 |
8.9 |
9.0 |
12.0 |
14.0 |
17.3 |
21.3 |
|
Rated operating power (Pe) |
AC-3,380/400V |
kW |
2.2 |
4.0 |
5.5 |
7.5 |
11.0 |
15.0 |
18.5 |
18.5 |
22.0 |
30.0 |
37.0 |
45.0 |
AC-3,660/690V |
kW |
3 |
5.5 |
7.5 |
10.0 |
15.0 |
18.5 |
18.5 |
30.0 |
33.0 |
37.0 |
45.0 |
45.0 |
|
AC-4,380/400V |
kW |
1.1 |
2.2 |
3.0 |
4.0 |
5.5 |
7.5 |
7.5 |
7.5 |
11.0 |
15.0 |
18.5 |
22.0 |
|
AC-4,660/690V |
kW |
0.75 |
1.1 |
1.5 |
3.7 |
4.0 |
5.5 |
7.5 |
7.5 |
11.0 |
11.0 |
15.0 |
18.5 |
|
Mechanical durabilities |
10,000 times |
1200 |
1000 |
900 |
650 |
|||||||||
Electricaldurabilities |
AC-3 |
10,000 times |
110 |
90 |
65 |
|||||||||
AC-4 |
10,000 times |
22 |
22 |
17 |
11 |
|||||||||
Operationfrequency |
AC-3 |
Time/hour |
1200 |
600 |
||||||||||
AC-4 |
Time/hour |
300 |
300 |
|||||||||||
Coil |
||||||||||||||
Ratedcontrol circuitvoltage(Us) |
50Hz |
V |
24,36,48,110 ,127 ,220/230 ,240 ,380/400 ,415 ,440 |
|||||||||||
50/60Hz |
V |
24,36,48,110 ,127 ,220/230 ,240 ,380/400 ,415 ,440 |
||||||||||||
Allowable control circuit voltage(Us) |
Operation |
V |
85%~110% Us(installing angle of ±22.5°); 70%~120% Us(installing angle of ±5°) |
|||||||||||
Drop-out |
V |
20%~75% Us(installing angle of ±22.5°); 20%~65% Us(installing angle of ±5°) |
||||||||||||
Coil power |
Actuation |
VA |
50 |
60 |
70 |
200 |
200 |
|||||||
Holding |
VA |
6~9.5 |
6~9.5 |
6~9.5 |
15~20 |
15~20 |
||||||||
Heat dissipation |
W |
1~3 |
1~3 |
1~3 |
6~10 |
6~10 |
||||||||
Main circuit terminal wiring capability |
||||||||||||||
Soft wireWithout terminal |
1 wire |
mm² |
1…4 |
1.5…6 |
2.5…25 |
4…50 |
||||||||
2 wires |
mm² |
1…4 |
1.5…6 |
2.5…16 |
4…25 |
|||||||||
Soft wireWith terminal |
1 wire |
mm² |
1…4 |
1…6 |
2.5…25 |
4…50 |
||||||||
2 wires |
mm² |
1…2.5 |
1…4 |
2.5…10 |
4…16 |
|||||||||
Hard wireWithout terminal |
1 wire |
mm² |
1…4 |
1.5…6 |
1.5…10 |
2.5…25 |
4…50 |
|||||||
2 wires |
mm² |
1…4 |
1.5…6 |
1.5…6 |
2.5…10 |
4…25 |
||||||||
Auxiliary contact |
||||||||||||||
Conventional thermal current (Ith ) |
A |
10 |
||||||||||||
Rated operating voltage (Ue) |
AC |
V |
380 |
|||||||||||
DC |
V |
220 |
||||||||||||
Rated control capacity |
AC-15 |
VA |
360 |
|||||||||||
DC-13 |
W |
33 |
||||||||||||
Certification |
CB 、CE 、SEMKO |
