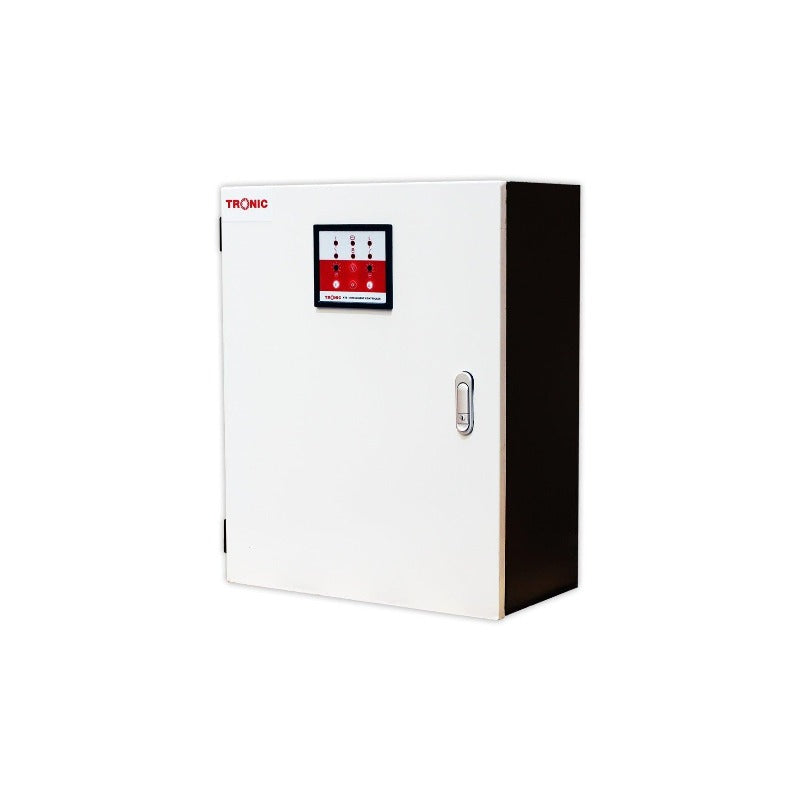

Automatic Transfer Switch 150A

The TRONIC Automatic Transfer Switch (ATS) controller's key component is a microprocessor, which can precisely monitor voltage (loss of main power). The ATS will begin working in the following situations: power outage, an overvoltage or undervoltage phase.

• DC power supply: DC(8-35)V between VIN and GND
• Measured voltage: Rated line voltage 400V; 50Hz/60Hz: 3 phase 4 wire.
• Range of abnormal power
  Over voltage threshold: 240~290, 5V. Default: 264 5V
  Under voltage threshold: 164~198V, 5V. Default: 172 5V
• Voltage normal delay: (1~60) seconds
• Voltage abnormal delay: (1~60) seconds, default: 5 seconds
• Genset start delay: Issued at a default of 5 second
• Genset start delay: Is set at default 60 seconds
• Working Temperature: (-30~+70) C
• Humidity: (20~95)%RH

Specifications:

• Colour: White
• Amps: 150A

• Voltage:  AC 230V±30%
• Material: Aluminium
• IP Rating: IP66

Warranty:

1 Year
