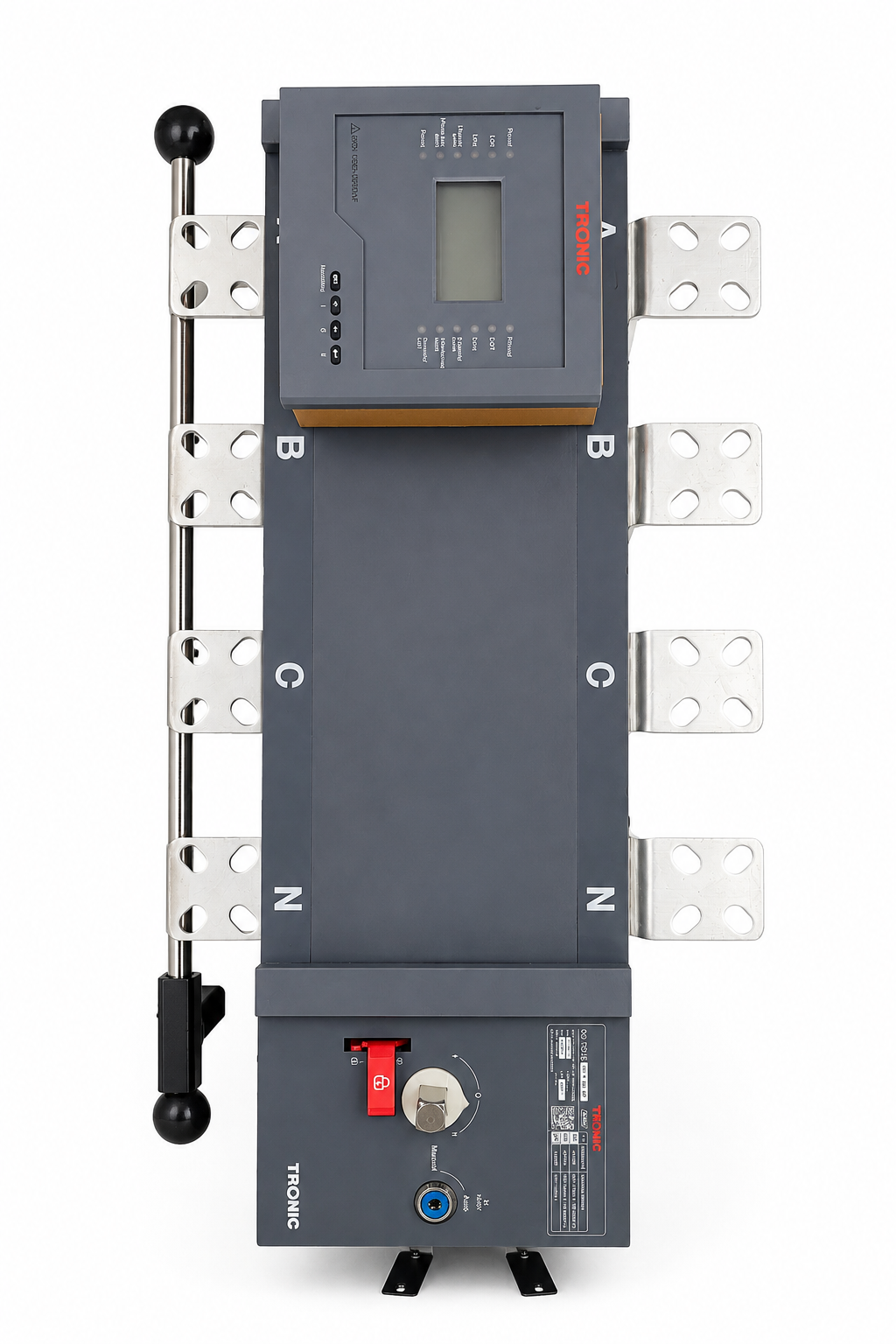

800A 4-Pole Automatic Transfer Switch (ATS) – 1600AF, D-Type, Split & LCD Screen, Bottom Entry

The TRONIC TQ1S 800A 4-Pole Automatic Transfer Switch (ATS) is a high-capacity power transfer solution designed for reliable switching between a normal power source and an alternative power source. This model features a 1600AF frame rating, 800A rated current, 4-pole configuration, and a D-Type split controller with LCD screen.

The TQ1S series is designed for AC 50/60Hz power systems with a rated operating voltage of 230/400V. It supports both automatic and manual switching, allowing electrical loads to be transferred between the normal and alternative sources.

The unit incorporates an electrical key lock, operating handle, mechanical padlock function, and position indicator showing I, O and II switch positions. Its bottom-entry configuration makes it suitable for integration into a range of electrical distribution and backup power installations.

Application

The TRONIC TQ1S 800A ATS is suitable for high-capacity electrical systems where reliable transfer between primary and backup power sources is required, including:

• Generator backup power systems
• Utility-to-generator transfer systems
• Industrial power distribution
• Commercial and large building electrical systems
• Data centers and critical power installations
• Electrical distribution and control panels
• Standby and emergency power systems
• Infrastructure and high-load electrical installations
• Systems requiring automatic or manual source transfer
