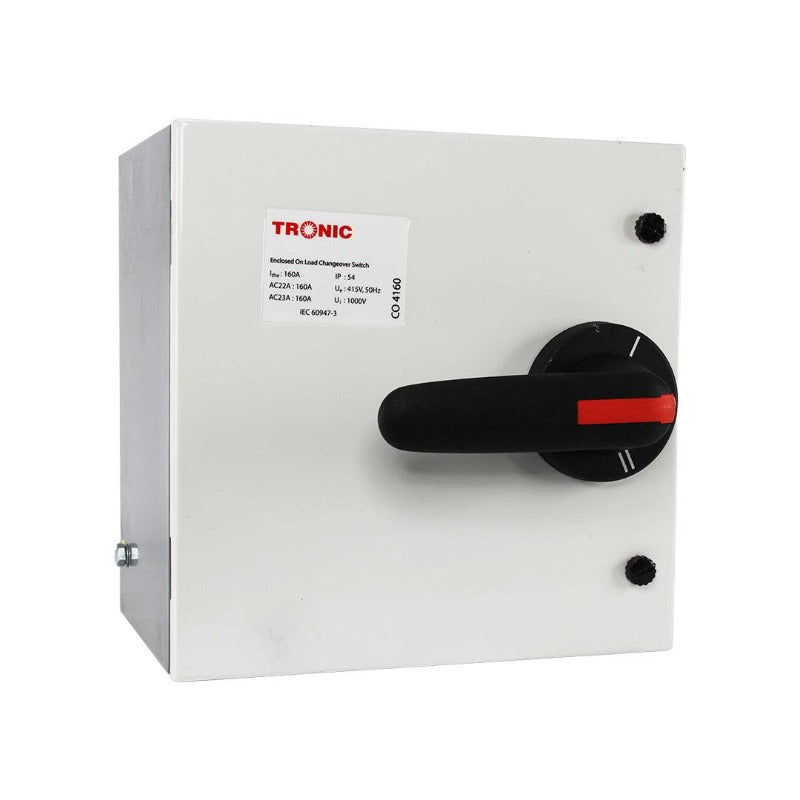

Onload Enclosed Manual Change Over 160A

Function:

• On Load manual changeover between 2 sources.
• Emergency Breaking
• Selection between two loads
• Safe isolation of downstream loads for maintenance purpose

Specifications:

• Colour: Grey
• Amps: 160Amps
• Voltage: AC 415V
• Dimensions: Height 350mm x Width 455mm
• Material: Aluminium
• Additional Information:
  • CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A
  • CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A
  • 2 External earthing points on each side
  • Wall mounted with 4 bolts
  • Door locking system allows opening of door only in OFF position
  • Incoming & outgoing easily interchangeable at site
  • Coating of epoxy polyester powder 70 micron
  • Removable plate top & bottom
  • Door with solid hinges

Warranty:

1 Year
