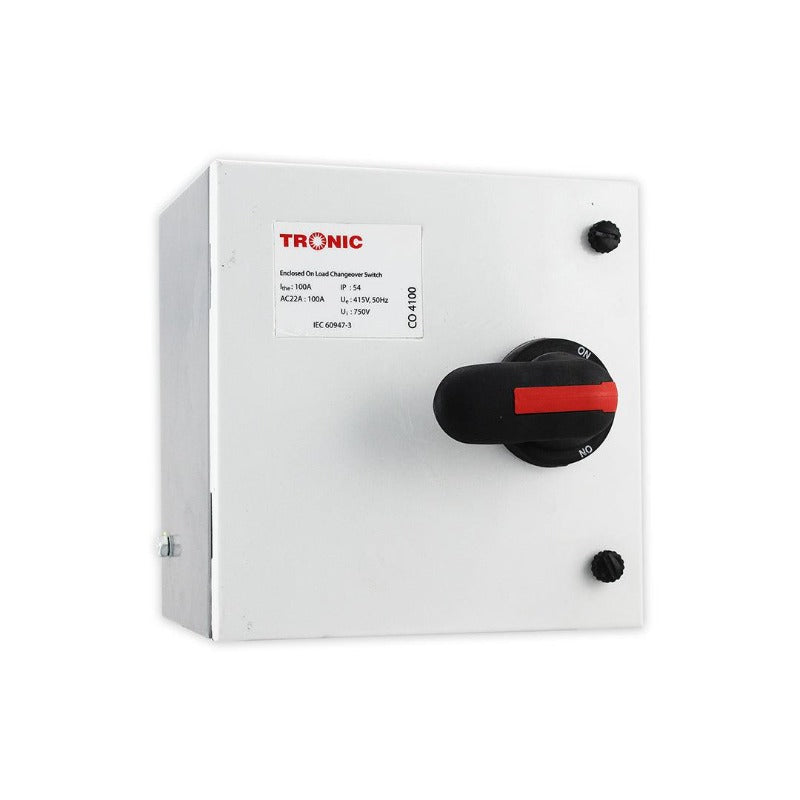

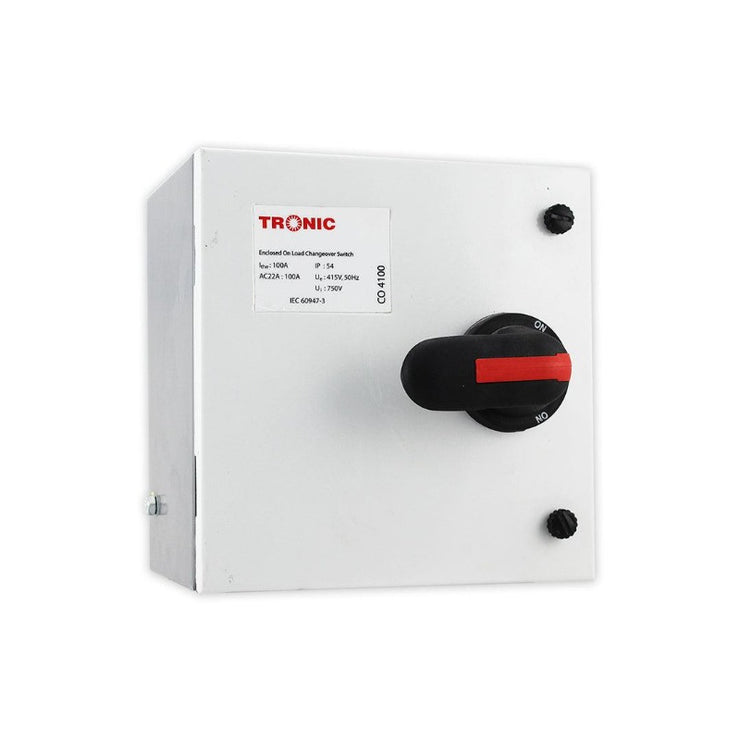

Rotary Changeover Switch 100A

KSh12,500.00

Product Vendor : CO 4100

Availability : In Stock

Shipping : Usually ships in 1-3 days





Function:

  • On Load manual changeover between 2 sources.
  • Emergency Breaking
  • Selection between two loads
  • Safe isolation of downstream loads for maintenance purpose

Specifications:

  • Colour: Grey
  • Amps: 100Amps
  • Voltage: AC 415V
  • Dimensions: Height 350mm x Width 455mm
  • Material: Aluminium
  • Additional Information:
    • CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A
    • CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A
    • 2 External earthing points on each side
    • Wall mounted with 4 bolts
    • Door locking system allows opening of door only in OFF position
    • Incoming & outgoing easily interchangeable at site
    • Coating of epoxy polyester powder 70 micron
    • Removable plate top & bottom
    • Door with solid hinges

Warranty:

1 Year
