63A Automatic Changeover Switch – 4 Pole for Backup and Main Power

63A Automatic Changeover Switch – 4 Pole for Backup and Main Power

SKU CO 4063-AT
KSh 10,300 - KSh 10,300
KSh 10,300
KSh 10,300 - KSh 10,300
KSh 10,300
Availability:
in stock, ready to be shipped

Features:

  • Rated Current: 63A
  • Rated Working Voltage: 220V AC
  • Rated Insulation Voltage: 690V AC
  • Impulse-Resistant Voltage: 8kV
  • Use Category: AC-33B
  • Poles: 4P
  • Frequency: 50Hz
  • Transfer Time: ≤50ms
  • Off-Time: ≤50ms
  • Weight: 0.86kg
  • Control Voltage: AC220V
  • Rated Conditional Short-Circuit Current: 55kA
  • Mounting Style: Vertical mount
  • Safety Clearance: S1 ≥ 30mm, S2 ≥ 203mm
  • Standard Compliance: EN60947-6-1:2005
  • Dimensions (L × W × H): 142.5mm × 78.5mm × 104mm
🛡️ KEBS Certified 📅 1-Year Warranty 🔒 Secure Checkout

Delivery Information:

Orders placed before 2:00PM - Same-day delivery.
Orders placed after 2:00PM - Next-day delivery.

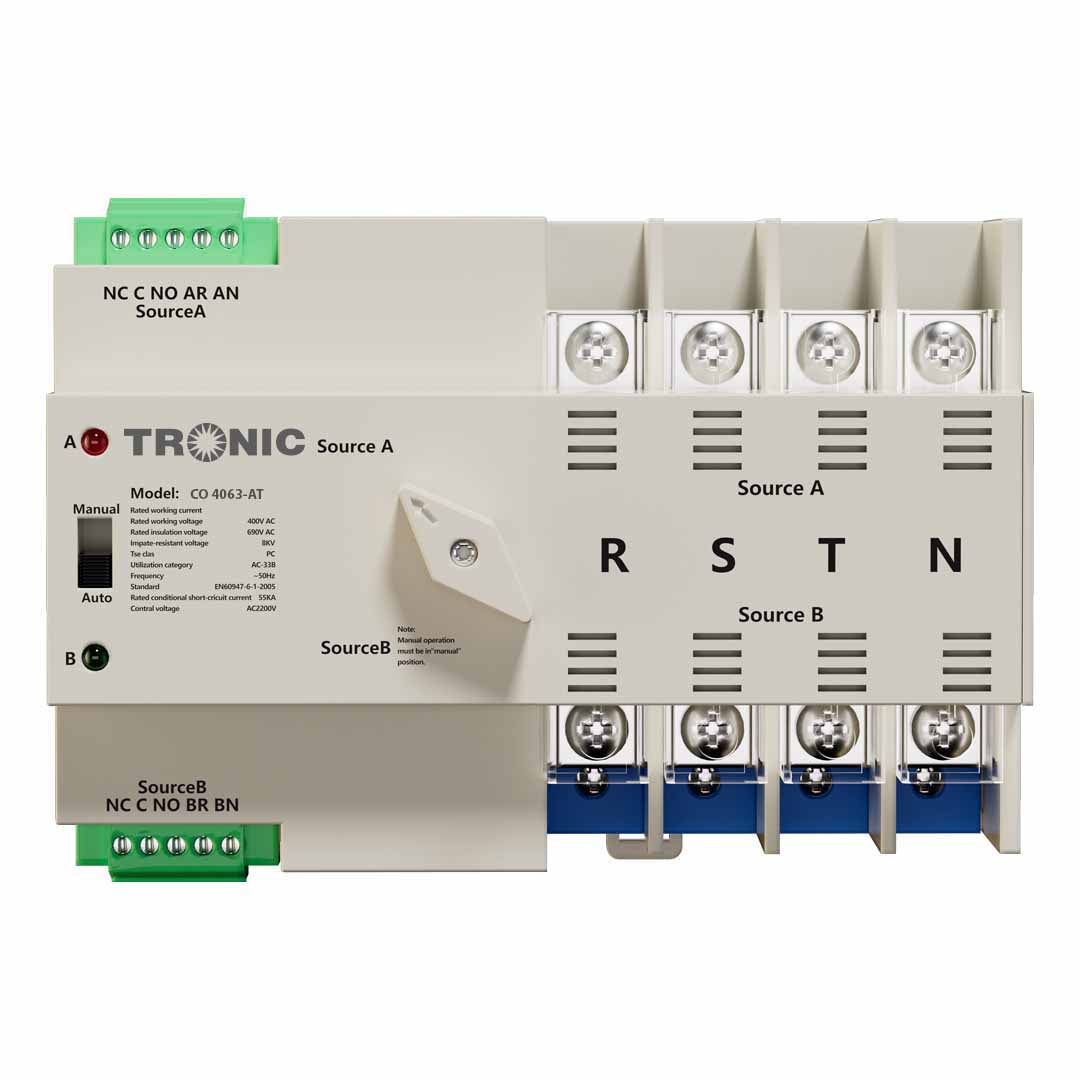

This 4-pole 63A Automatic Changeover Switch is designed for seamless power transition between the main grid and backup supply. Built for home and light commercial use, it ensures your power stays uninterrupted during outages by instantly detecting and switching to your backup source. Supporting both manual and automatic modes, it operates reliably at 220–240V AC and is housed in a compact frame, making it ideal for installation in residential power panels.

    Applications:

    • Residential Backup: Smooth switchover between grid and generator
    • Small Businesses: Reliable power transfer during outages
    • Offices and Shops: Maintains operation for lights, computers, and POS
    • Inverter Backup: Protects and manages dual power sources

    Warranty:
    1 Year
